ECM Technologies offers second hand furnaces, fully refurbished, with short delivery times. Each retrofit operation keeps the flexibility of ECM Technologies’ equipments. Indeed, each furnace can be configured according to your needs.
ECM Technologies is always looking for old furnaces. If you want to get rid of your old furnace, don’t hesitate to contact our team !
For more information on these services, contact us.

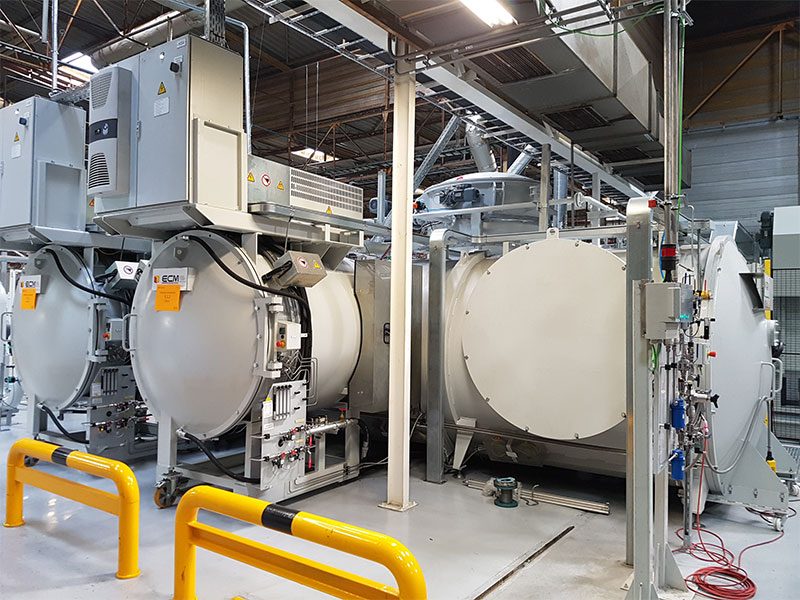

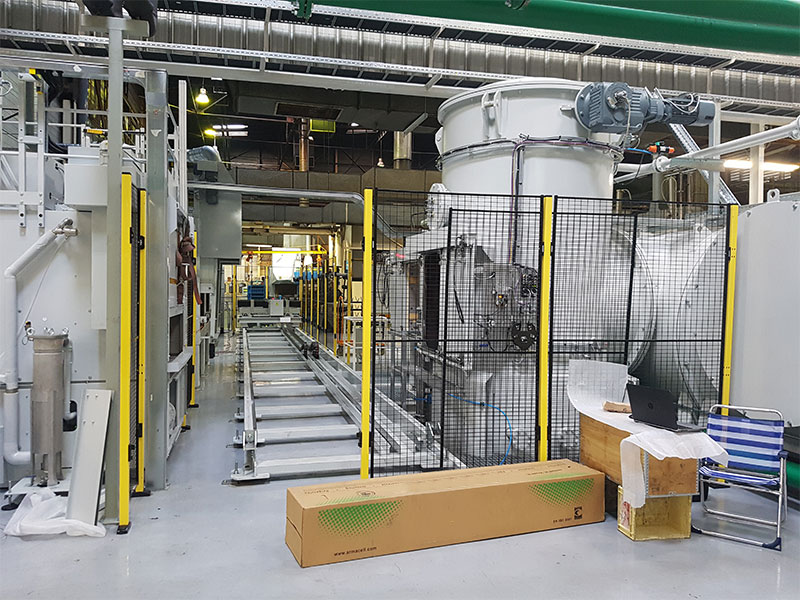

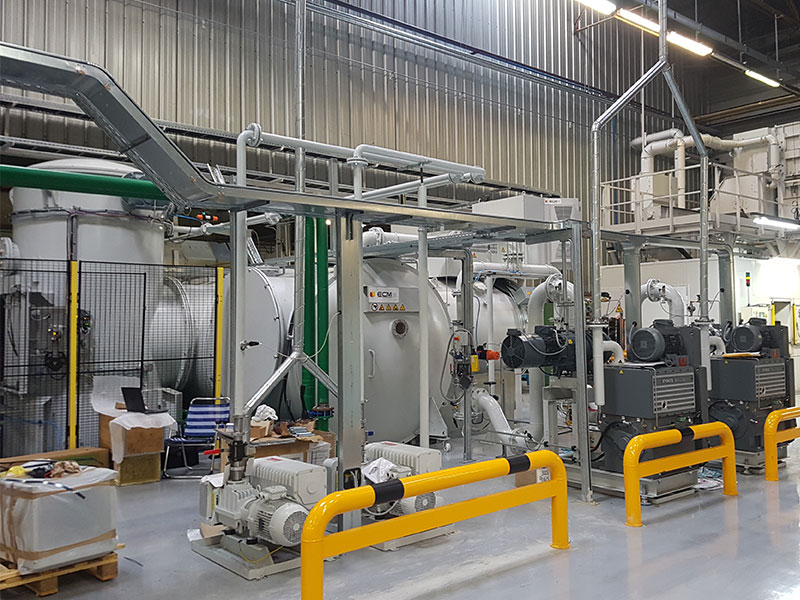

Low Pressure Carburizing Modular System with Oil Quenching and Perihperals
1 In/Out cell
1 Oil quenching cell
2 Vacuum carburizing cells
1 Tunnel with 6 positions and its internal loader
1 External loader
2 Tempering furnaces
1 Washing machine
1 Set of conveyors
2 Cooling units
Type: ICBP Flex with Oil Quenching
Useful Load: 1000 x 610 x 750 (Depth, Width, Height) 750Kg max
Max Temerature : 1050°C
Working temperature : 800°C – 1000°C
Working pressure : 4 à 20 mb
Fully automatized system managed by an « Intouch » supervision and Siemens automation
Price: contact us

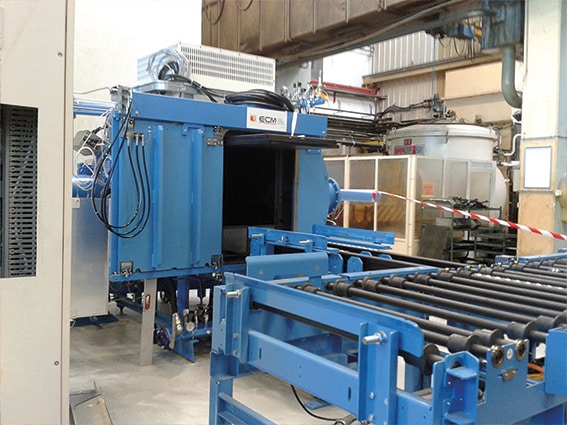

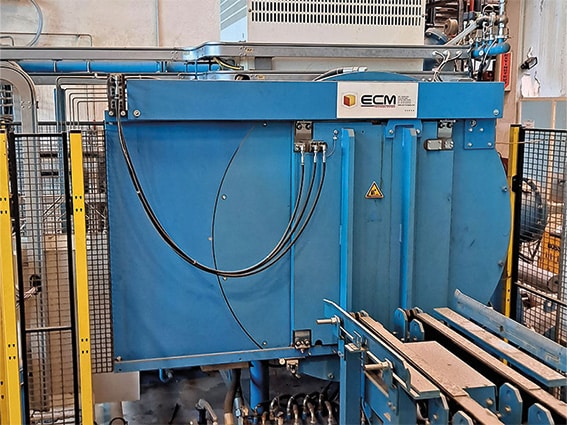

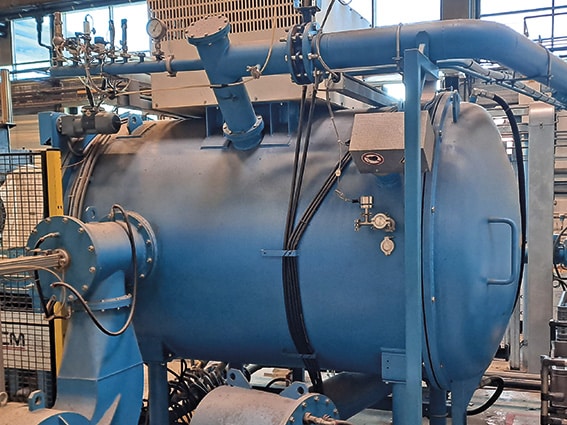

Used ECM vacuum carburizing furnace
Dimensions of the useful area: 1000 x 610 x 750 mm (Depth, Width, Height)
Maximum Temperature: 1050°C
Vacuum : 5 x 10-2 mb
Cooling : 1,2 bars Abs
Regulation of partial pressure
Furnace and conveyors can hold 600 x 900mm plates
Price: contact us

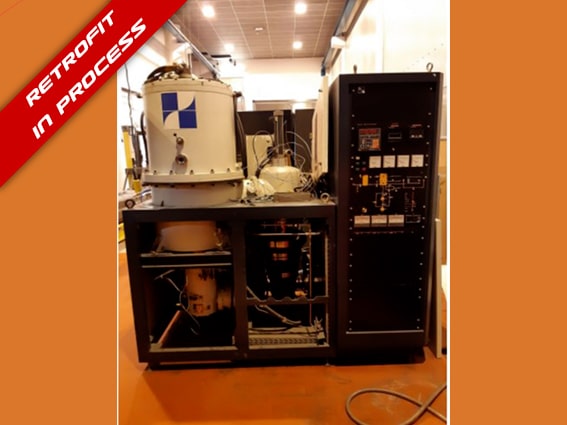

Used Infrafours vacuum furnace to be fully refurbished
DImensions of the useful area: 200 mm diameter x 350 mm height
Maximum Temperature: 1600°C
Maximum Rate of Temperature Rise: 600°C/h
Molybdenum thermal heaters
Gas scavenging
Partial pressure
Brand new Supervision
Price: contact us

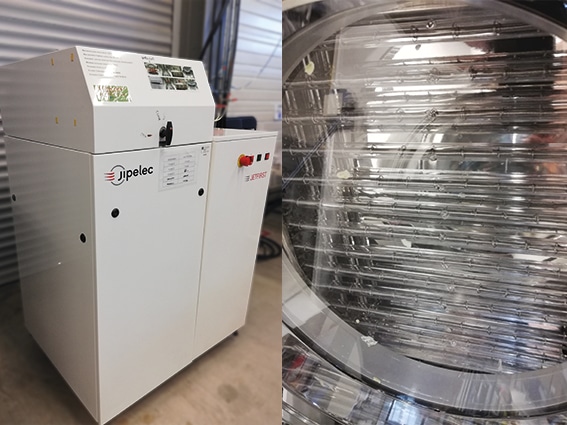

Second hand Jipelec brand RTP furnace
Model: Jetfirst 200
Wafer size: 100 – 200 mm
Max temperature: 1000°C
Maximum heating range of 50°C/s
Connected to 1 N2 purge gas line
Connected to 3 process gas lines (O2, N2 and 5%H2 in Ar)
Tested vacuum rate: 1.95mb – could be lowered with a dry pump
Price: contact us

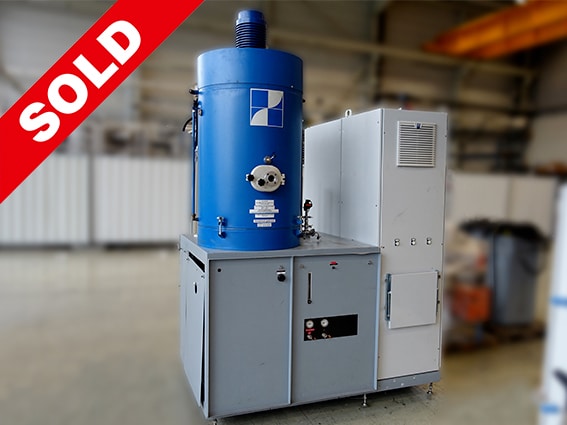

Second hand secondary vacuum furnace
Useful load of diameter 400 x 400mm
Max load : 70kg
Max temperature : 1 600°C
Molybdenum hot zone
Secondary vacuum (diffusion pump)
Controled atmospheres by gas scavenging or partial pressure (nitrogen, argon, hydrogen)
Accelerated cooling thanks to a convection turbine
Control and cabinet fully refurbished in 2012
Price: contact us

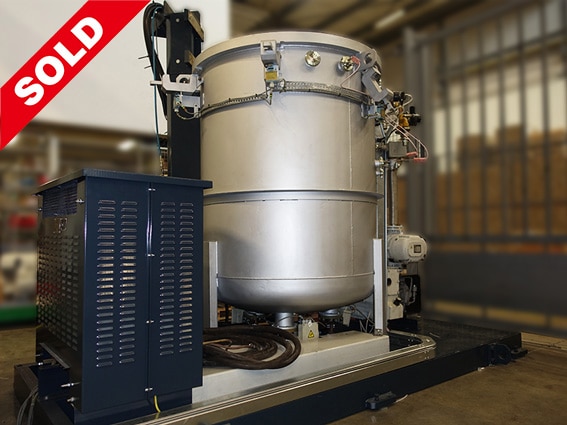

Second hand primary vacuum furnace
Fully refurbished: New heating elements, new pumps, new gas cabinet
3 heating zones, graphite
Heating up to 1200°C, max load 800kg
Fast cooling
Load 600mm diameter x 800mm height
Applications: Gas annealing, Primary vacuum annealing
Options and customisation are possible
Price: contact us

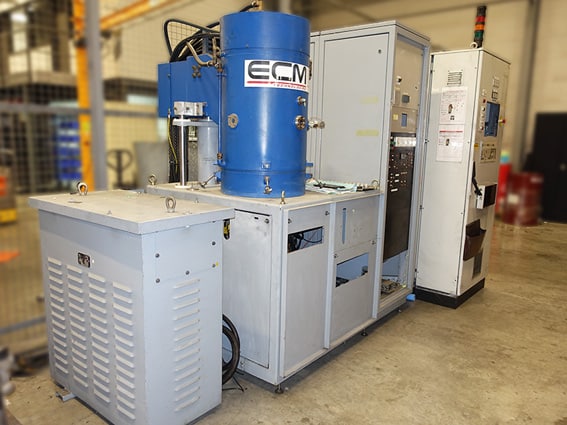

Primary or secondary vacuum furnace
Fully refurbished : new power generator & new gas circuit
Graphite heating element for a working temperature up to 2000°C
Possibility to choose a molybdenum heating elements to heat up to 1600°C
Possibility to add gas scavenging system : H2, wet H2, Nitrogen, Argon
Possibility to add a cooling valve
Useful load of diameter 220mm x height 350mm
No forced convection
Go to product page Cristal
Price: contact us

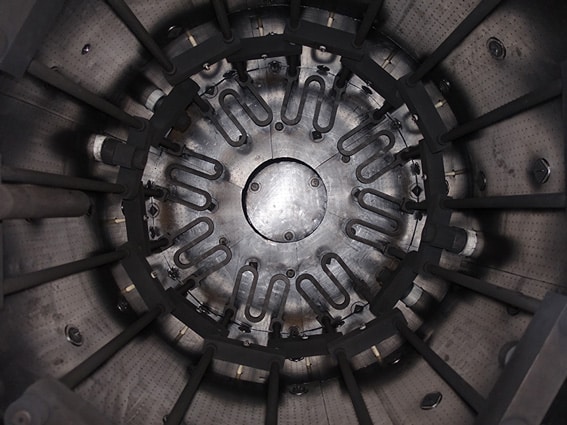

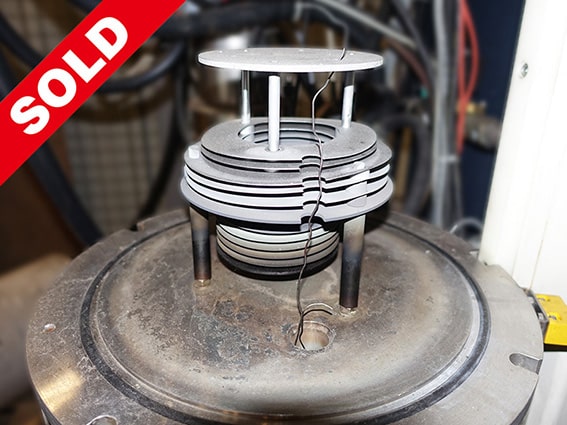

Metallic furnace for treatments up to 1600°C, gas scavenging, under partial pressure or secondary vacuum
Fully refurbished: new power generator & thermal device
Molybdenum heating element
Primary vacuum : mechanic pump
Secondary vacuum : diffusion pump
Neutral gas scavenging circuit
Hydrogen gas scavenging circuit, no burner exhaust system
Neutral gas & hydrogen partial pressure
Forced convection system
Supervision
Useful load 11×14
Go to product page Lilliput
Price: contact us

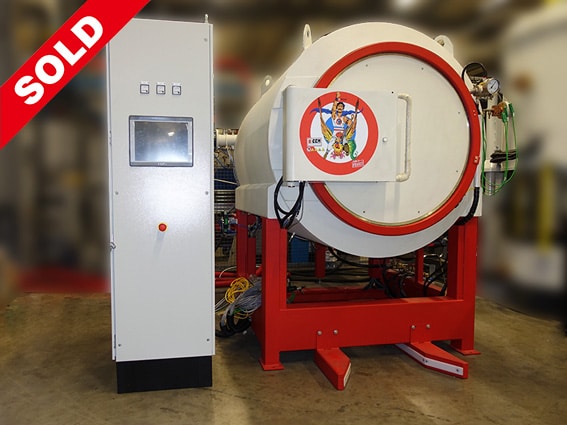

Second hand vacuum furnace, fully refurbished
Ideal for tempering
Dimensions : 900x600x600
Max load : 600kg
Working temperature 750°C +/- 5 °C
Chrome Nickel heating elements
Vacuum 5 10-2
1 mechanic pump & 1 root
